The KTB8316 is a precision adaptive-on-time (AOT) step-down (buck) switching regulator. The device has class-leading accuracy, fast transient response and high efficiency. Additional features include current, over/under voltage and thermal protections.
The AOT control along with a thermally enhanced PwrCSP™ package provides a best-in-class solution with reduced size external components for mobile and non-mobile applications. The step-down buck regulator operates over a user set 0.3V to 3.3V output range. Please review the Part Number Options Table to determine the output range for each product option.
Switching frequency options of 1MHz, 2MHz and 4MHz are available with Forced-PWM or Auto-skip mode at light loads.
The KTB8316 is available in RoHS and Green compliant PwrCSP™ HP-WLCSP-6 Package.
Part Number Options
| Part Number | Factory Options | ||
| FSW | Default VOUT | Output Voltage range | |
| KTB8316EEAA-AA-TA* | 1MHz | 0.6V | 0.3V to 1.65V |
| KTB8316EEAA-BD-TA | 2MHz | 1.2V | 0.6V to 1.8V |
| KTB8316EEAA-CJ-TA | 4MHz | 1.2V | 1.0V to 3.3V |
*Please contact Kinetic Technologies Sales for availability
- Operating Range
- 2.5V to 5.5V Input Voltage Range
- Output voltage options from 0.3V to 3.3V (Please review the Part Number Options Table to determine the output range for each product option)
- Up to 2.5A Output Current
- Adaptive On-Time Control
- Fast and accurate transient response
- Seamless transitions between Auto-skip and PWM operation
- Optimized for smallest solution size and external components
- Integrated High-Side / Low-Side FETs
- ±0.75% Output Voltage Accuracy
- Peak Efficiency up to 90% for VOUT = 1.8V at 4MHz
- 39μA quiescent supply current
- Switching frequency options 1MHz, 2MHz and 4MHz
- Forced-PWM or Auto-Skip Modes
- Over-Current and Short-Circuit protection
- UVLO and Thermal Shutdown Protected
- Active high Enable pin compatible with 1.2V logic
- Active Output Discharge in shutdown mode
- -40°C to 85°C Operating Temperature Range
- PwrCSP™ HP-WLCSP-6 1.464mm x 1.064mm
- Smartphones, Mobile Internet Devices, IoT
- Tablets, Notebooks
- Wearable and portable electronic devices
- Digital still cameras (DSC), Drones
- Gaming Consoles and Accessories

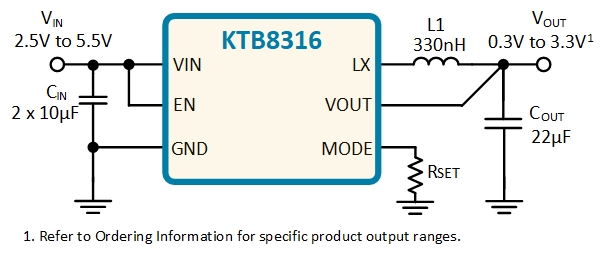

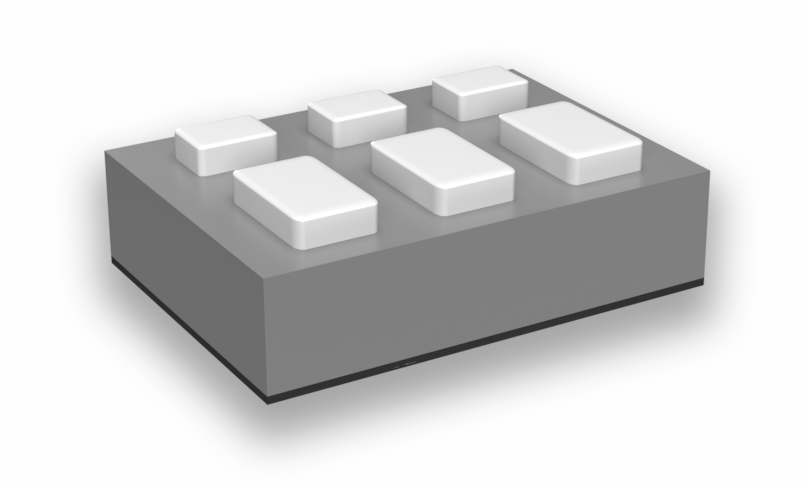

| Package | Dimensions | Package Code |
| HP-WLCSP-6 | 1.064mm x 1.464mm x 0.460mm | EAA |
| Description | Documents | Type |
|---|---|---|
| Package Outline Drawing | HP-WLCSP-6 EAA POD | |
| Package Outline Drawing | HP-WLCSP-6 EAB POD | |
| Datasheet | KTB8316-KTB8311-04f |
