The KTE7001 is a single chip, 13.5W wireless power receiver that conforms to WPC/Qi V-1.3 Extended Power Profile (EPP) standard specifications for solutions requiring 9VDC output voltage. A wireless power receiver provides regulated DC output power derived from AC power that is magnetically coupled into a connected wireless power receiver coil.
The KTE7001 integrates a full synchronous rectifier and LDO to efficiently convert the wireless AC power into 9VDC output at up to 1.5A current. The embedded microcontroller with firmware and OTP/ROM memory provides system monitoring, protection, and communications back to the power transmitter.

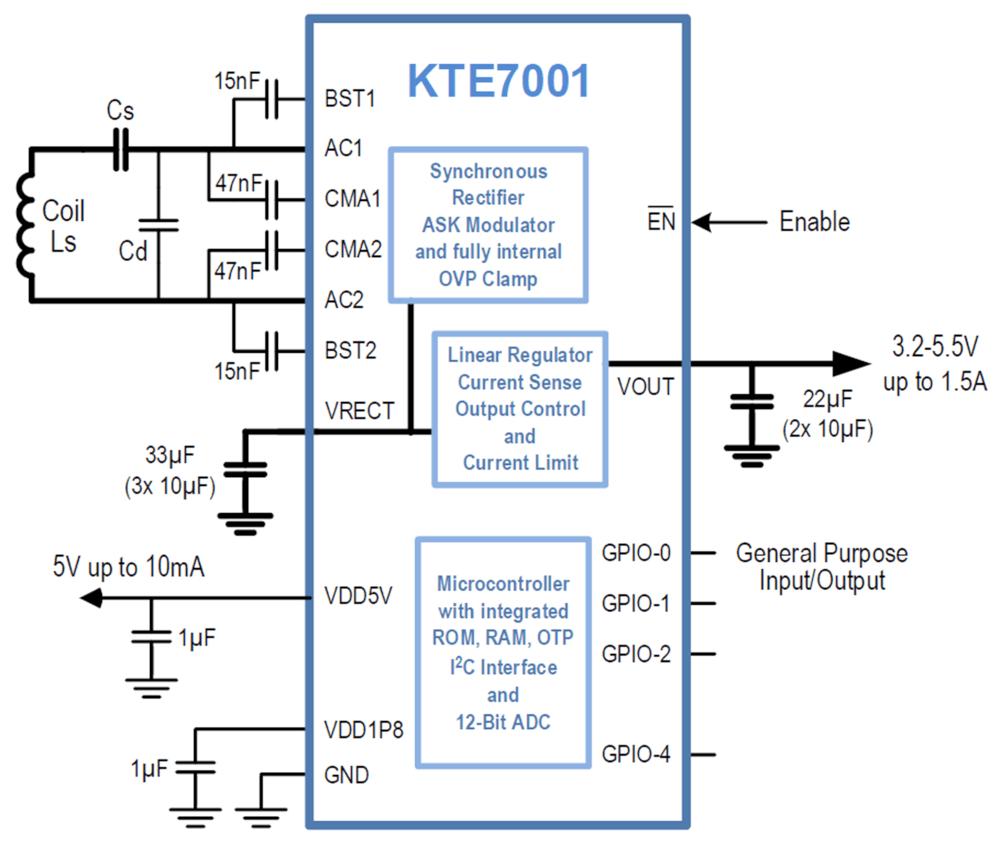

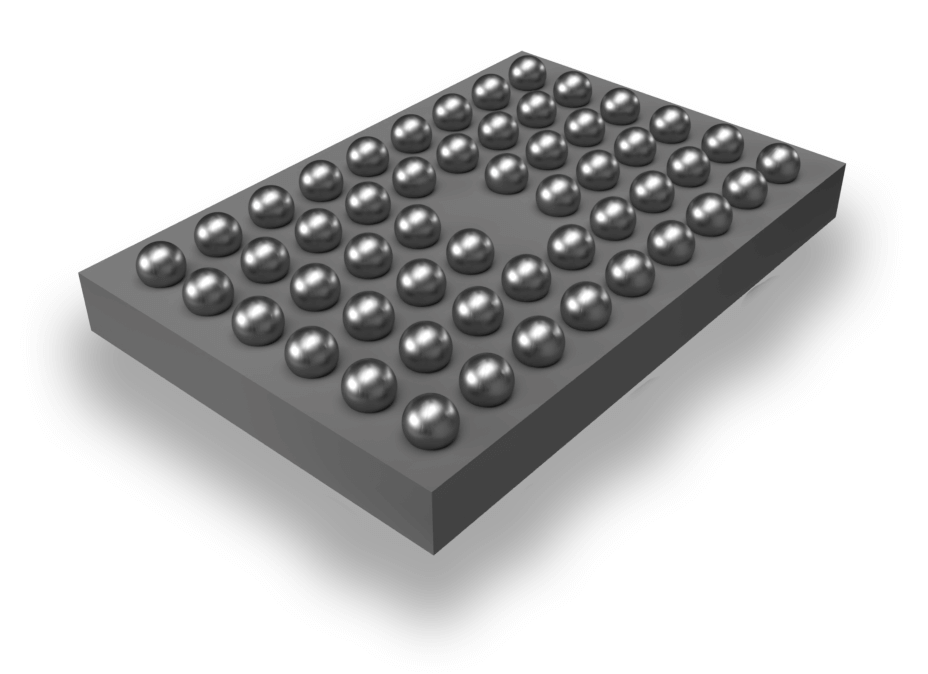

The KTE7001 is packaged in an advanced, fully “green” compliant, 2.66mm x 3.90mm, 52-bump Wafer-Level Chip-Scale Package (6×9 WLCSP).
- Single Chip Solution for 13.5W wireless power receiver
- WPC/Qi V-1.3 EPP Compliant for 9VDC at 1.5A
- 95% Peak Efficiency LDO mode from Coil to 9VOUT
- Full Synchronous Rectification with Low-RDSON
- LDO Mode or Pass-Through Mode configurable
- 9Voutput at up to 1.5A peak output current
- Short-circuit and current limit protection
- Embedded Microcontroller and OTP/ROM Memory
- Configurable Foreign Object Detection (FOD)
- Standard Firmware with optional external resistor configuration of FOD operating parameters
- Device Enable control pin for extremely low power consumption while in disabled mode
- Proprietary, robust internal Over-Voltage Protection
- Without any external “Sink” resistor or other devices
- Optional external NTC Over-Temperature Protection
- -40°C to 85°C operating temperature range
- 52-bump WLCSP 2.66 x 3.90mm (0.4mm pitch)
- Mobile Internet Devices, IoT, Accessories
- Battery Powered Medical, Industrial, Consumer
- Wireless Headsets, Headphones, Earbuds
| Package |
Dimensions |
Package Code |
| WLCSP69-52 |
2.66mm x 3.90mm x 0.62mm |
NAA |
| Function |
Input Voltage Range (V) |
Input Integrated Voltage Clamp (V) |
Output Voltage Range (V) |
Output Power (W) |
Wireless Power Standard |
| Power Receiver |
— |
25 |
3.2-5.5 |
15 |
WPC/Qi v1.2.4 and v1.3 |
